The WG103T GSM WiFi alarm system is a compact smart home security kit with a 2.4 inch touch panel, Tuya Smart app support and wireless accessories for daily protection. It is suitable for houses, apartments, offices, garages and small commercial spaces.

Three Ways to Receive Alerts

When the system detects activity, it can inform you by app notification, SMS and phone call. This gives you several independent ways to learn about an event and react faster when you are away.

Remote Control with GSM and WiFi

Built-in GSM and WiFi modules allow convenient remote control from a smartphone. You can arm, disarm and monitor the system status from almost anywhere, depending on network coverage and configuration.

2.4 Inch Touch LCD Panel

The panel has a clear 2.4 inch touch screen that makes everyday use simple. The interface and voice prompts support convenient operation, and the compact panel fits well in modern interiors.

Tuya Smart App Integration

Tuya Smart support makes it easier to use the alarm as part of a smart home setup. You can manage basic security functions from your phone and receive notifications about important events.

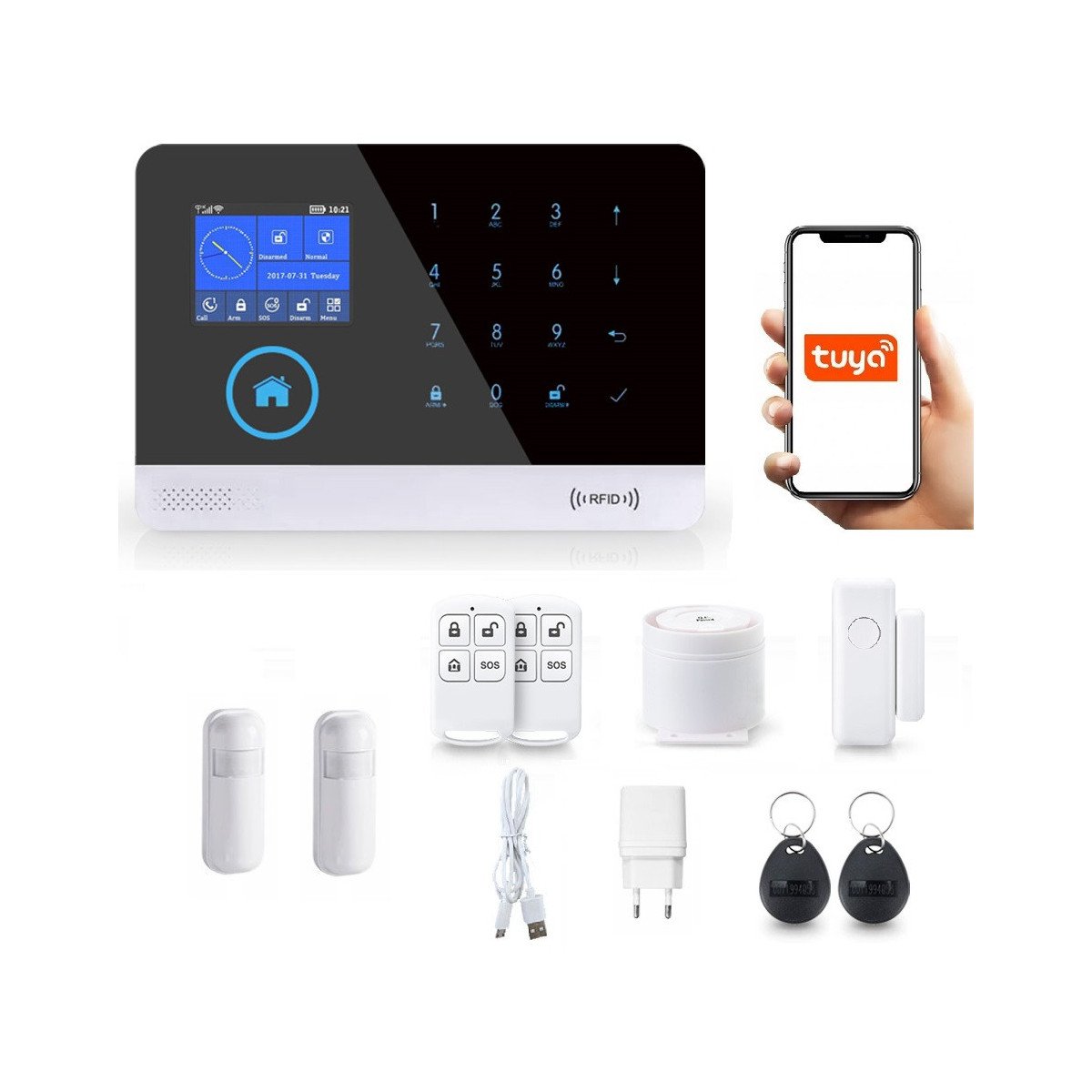

Ready Kit with Motion Detection

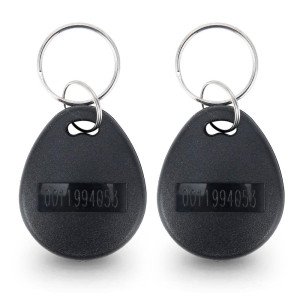

This version includes 2 PIR motion sensors, one door/window opening sensor, RFID cards, remote controls and a wired siren. It is a practical set for protecting multiple zones without complex cabling.

Automatic Arming and Disarming

Schedule automatic arming and disarming to match your daily routine. This is helpful when the building should be protected at night, during working hours or whenever it is left unattended.

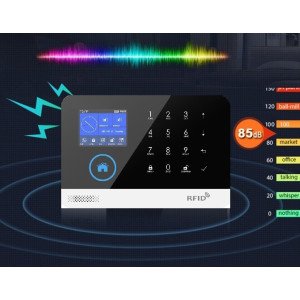

85dB Siren and Backup Battery

The included siren provides a clear local warning, while the built-in 1000mAh battery helps the alarm continue working during short power interruptions.

Expandable Configuration

The system can be expanded with compatible wireless sensors and RFID cards, allowing you to build a setup for more entrances, rooms and selected security zones.

Technical Specifications

Alarm Panel / Control Unit:

• • Display: 2.4 inch touch LCD
• • Operating voltage: DC 5V/1A
• • Standby current: under 80uA
• • Working current: under 120mA
• • Siren current draw: under 500mA
• • Wireless operating frequency: 433MHz
• • GSM frequency: 850/900/1800/1900MHz
• • WiFi standard: IEEE802.11b/g/n
• • Built-in battery: 3.7V / 1000mAh
• • Operating temperature: -10°C to 55°C
• • Allowed humidity: under 80% without condensation
• • Menu languages include English, German, Russian, French, Spanish, Italian, Polish and Portuguese
• • Mobile app: Tuya Smart
• • Works with Amazon Alexa and Google Assistant
• • Dimensions: 185x125x15mm
• • Panel color: black

PIR Motion Sensors:

• • Quantity in this set: 2
• • Detection angle: 110 degrees
• • Power supply: 2 AAA batteries included
• • Standby current: 15mA
• • Working current: 25mA
• • Signal frequency: 433MHz ± 0.5MHz
• • Detection area: up to 12m
• • Maximum distance from panel: up to 80m in open space
• • Detected object speed: 0.3 - 3m/s
• • Dimensions: 59x45x107mm

Opening Sensor and Remote Control:

• • Door/window sensor power supply: 1 DC 3V battery
• • Door/window sensor standby current: below 8uA
• • Door/window sensor working current: 15mA
• • Signal frequency: 433MHz
• • Remote arming and disarming
• • Remote communication frequency: 433MHz
• • Remote battery: 6F22 9V
• • Recommended remote working temperature: -10°C to 60°C
• • Maximum remote humidity: 95%

Good Choice for Smart Home Users

The WG103T is useful when you want a compact alarm with app control, GSM backup communication and flexible wireless accessories. It provides practical security without requiring a complicated professional installation.

Convenient for Everyday Operation

Remote controls and RFID cards make everyday arming and disarming quick and comfortable. This is helpful for families, employees or anyone who needs easy access to the protected place.

Use in Many Locations

The system can protect an entrance, hallway, living room, office, storage area, garage or selected equipment. With proper sensor placement, it helps detect movement and opening events in the most important zones.

Simple Installation Approach

Place the panel in an accessible indoor location, mount PIR sensors where movement naturally occurs and place the opening sensor on a main door or window. After installation, test every sensor and notification channel.

Practical Everyday Protection

The WG103T GSM WiFi Tuya Smart Alarm System 2.4 Inch + 2xPIR is prepared for customers who want a ready kit with remote control, wireless detection and a clear alarm signal. It helps keep important spaces under control when you are away.

Reliable Security Base

This set can be used as a starting point for a larger security system. Add more compatible accessories when your needs change or when you want to protect additional rooms and entrances.
