H502 GSM WiFi Alarm System 4.3" Touch LCD
649.99 zł
629.99 zł
Save 20.00 zł
Tax included

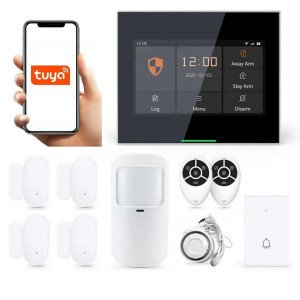

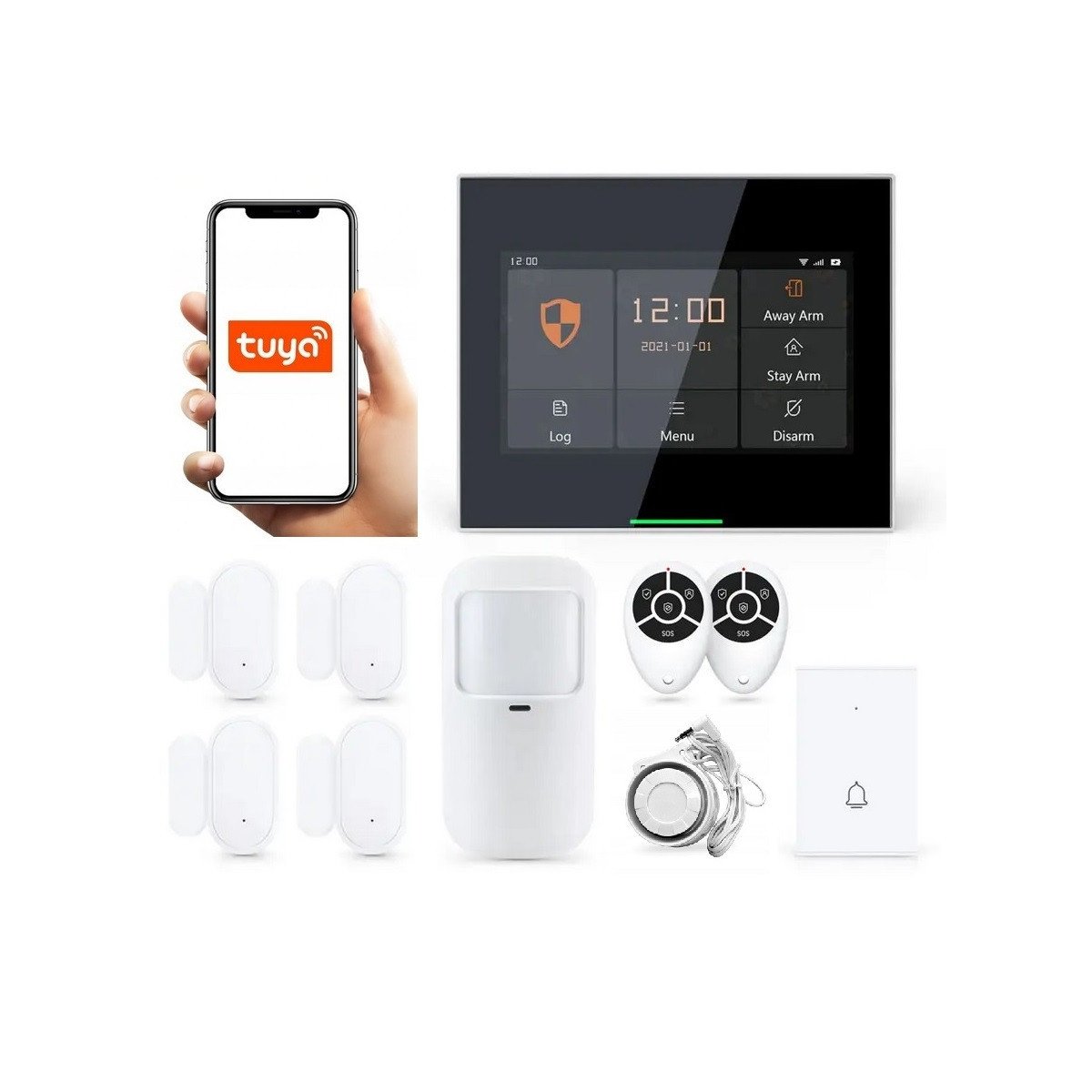

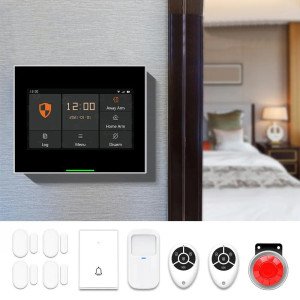

Included:
- • 4.3" alarm control panel
- • 4x wireless door/window opening sensor
- • 1x wireless PIR motion sensor
- • 2x remote controls
- • 1x wired alarm siren
- • 1x wired doorbell
- • 1x power adapter (charger)
- • User manual
- • Original packaging
Expand your set! Need more sensors, remotes or RFID tags? You can find compatible accessories in our offer and build a security system matched to your needs!
Privacy Policy
Delivery Terms
Returns and Complaints
The H502 GSM WiFi Alarm System 4.3" Touch LCD is a complete smart alarm system for a home, office, garage or small business. It combines GSM, WiFi and app control, helping you monitor your property and react quickly when something happens.
Three-Way Alarm Notifications – Phone Call, SMS and App Alert
When the system detects an intrusion or another alarm event, it can notify you in three ways: by calling a predefined phone number, sending an SMS and displaying an alert in the mobile app. You can define several alarm numbers so that important information reaches the right person quickly.
Remote Control with GSM and WiFi
Thanks to GSM and WiFi connectivity, you can arm, disarm and check the alarm status remotely from your smartphone. The system allows convenient control even when you are away from home, so you can keep your property under supervision from almost anywhere.
Clear Display and Convenient Everyday Operation
The alarm control panel uses a practical 4.3-inch color touch LCD display, making configuration and daily operation easier. The clear interface helps you manage sensors, remotes, alarm modes and basic settings without complicated operation.
Tuya Smart App and Smart Home Integration
The system works with the Tuya Smart app, allowing mobile control and smart home integration. Depending on the configuration, it can cooperate with compatible sensors, remotes, sirens and selected smart home ecosystems.
Automatic Arming and Disarming Schedule
You can set automatic arming and disarming schedules to match your daily routine. This is useful when you leave for work, come back home or want the system to protect the property during selected hours.
Backup Battery and Loud Siren
The built-in backup battery helps keep the system active during a short power outage. The included wired siren provides a loud warning signal that can deter intruders and alert people nearby.
Expandable Security System
The set can be expanded with additional compatible sensors, remote controls and RFID accessories. This makes it easier to build a system adapted to the size and layout of your home or business premises.
Technical Specifications:
Alarm Panel / Control Unit:
- • Model H502
- • Display: 4.3" touch LCD
- • Operating voltage: DC 5V/1A
- • Operating current: <140mA (display off), <280mA (display on)
- • Standby current: <80uA
- • Siren current: <560mA
- • Wireless operating frequency: 433MHz
- • GSM frequency: 850/900/1800/1900MHz
- • WiFi standard: IEEE802.11b/g/n
- • Built-in battery: 3.7V/500mAh (backup power)
- • Operating temperature range: -10°C ~ 55°C
- • Permitted humidity: < 80% (non-condensing)

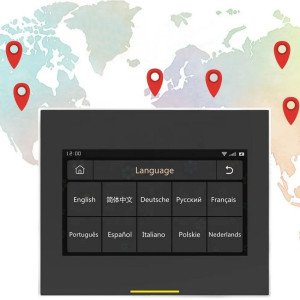

- • Supported languages: English, Chinese, German, Russian, French, Portuguese, Spanish, Italian, Polish, Dutch
- • Mobile app: Tuya Smart (available in Polish)
- • Compatibility: Amazon Alexa / Google Assistant
- • Dimensions: 120x98x12mm
PIR Motion Sensor:
- • Detection angle: 110°
- • Power supply: 2x AAA battery (included)
- • Standby power consumption: <15mA
- • Operating power consumption: <25mA
- • Signal transmission frequency: 433MHz ± 0.5MHz
- • Detection range: up to 12m
- • Maximum distance from control panel: up to 80m (in open area)
- • Moving object detection speed: 0.3 - 3 m/s
- • Dimensions: 59x45x107mm
Door/Window Opening Sensor:
- • Power supply: battery (manufacturer details, not included)
- • Standby power consumption: below 8 uA
- • Operating power consumption: <15mA
- • Signal transmission frequency: 433MHz
- • Maximum distance from control panel: up to 120m (in open area)
- • Maximum internal distance between sensor parts: 15mm
- • Operating conditions: -10°C ~ +50°C
Remote Control:
- • Functions: Remote arming and disarming
- • Communication frequency: 433MHz
- • Power supply: battery 6F22 9V (included)
- • Communication range: up to 150m (w open area)
- • Recommended operating temperature: -10°C ~ 60°C
- • Maximum operating humidity: 95%
Wireless Doorbell:
- • Functions: Fast arming and disarming by proximity tag
- • Standby power consumption: zazwyczaj 0mA
- • Operating power consumption: 40mA
- • Dimensions: 76x48x11mm
Alarm Siren:
- • Sound level: up to 110dB
- • Type: Wired
- • Can be connected through the control panel system
- • Operating conditions: -10°C ~ +40°C
Flexible Security for Different Buildings
The alarm set is suitable for flats, houses, garages, small offices, shops and other spaces where quick notification matters. You can build a simple starter configuration first and then add compatible wireless accessories when your needs grow.
Convenient Daily Operation
The system can be armed and disarmed with remote controls, RFID tags or the mobile app, so everyday use is simple for household members and employees. Clear status information helps you check whether the protected area is secured before leaving.
GSM Backup and App Control
GSM communication gives an additional notification path through calls or SMS messages, while WiFi and the smart app make remote monitoring more comfortable. This combination is useful when you want alerts even when you are away from the protected place.
Expandable Monitoring Setup
The control panel can work with compatible sensors, sirens and accessories, allowing you to adapt the system to doors, windows, corridors, storage rooms and other sensitive areas. It is a practical choice for gradual expansion without replacing the whole alarm.
Clear Setup for Everyday Users
The set is designed so that the most important elements are included from the beginning: a control panel, sensors, remotes, siren and power accessories. This allows you to start with a functional alarm and then expand it gradually.
For Homes, Offices and Small Businesses
The system can help secure entrances, windows, corridors, utility rooms and other sensitive places. It is suitable for people who want a practical alarm without complicated professional installation.
Additional Practical Benefits
The product is intended to make everyday monitoring, security or use more convenient. Its compact design, simple operation and practical included accessories help you prepare the device quickly and adapt it to your own space.
