The H502 GSM WiFi alarm system is a complete smart security kit for a house, apartment, office, shop, garage or small business area. It combines a modern 4.3 inch touch panel, GSM and WiFi communication, mobile app control and a set of wireless sensors prepared for everyday protection.

Instant Alerts in Three Ways

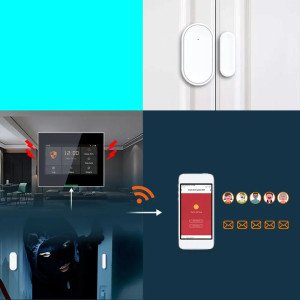

When the system detects an intrusion or another important event, it can notify you by phone call, SMS and mobile app alert. You can define up to 5 phone numbers, so important information can reach you or another trusted person even when you are away from the property.

Remote Control with GSM and WiFi

Control the alarm from your smartphone using Tuya Smart, check the current status, arm or disarm the system and receive notifications wherever you have network access. GSM support gives an additional communication channel when WiFi alone is not enough.

4.3 Inch Touch LCD Panel

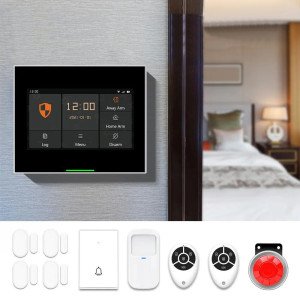

The central unit is equipped with a clear 4.3 inch color touch screen. It is designed for intuitive daily operation, fast access to the most important functions and convenient configuration directly from the panel.

Practical Protection for Several Zones

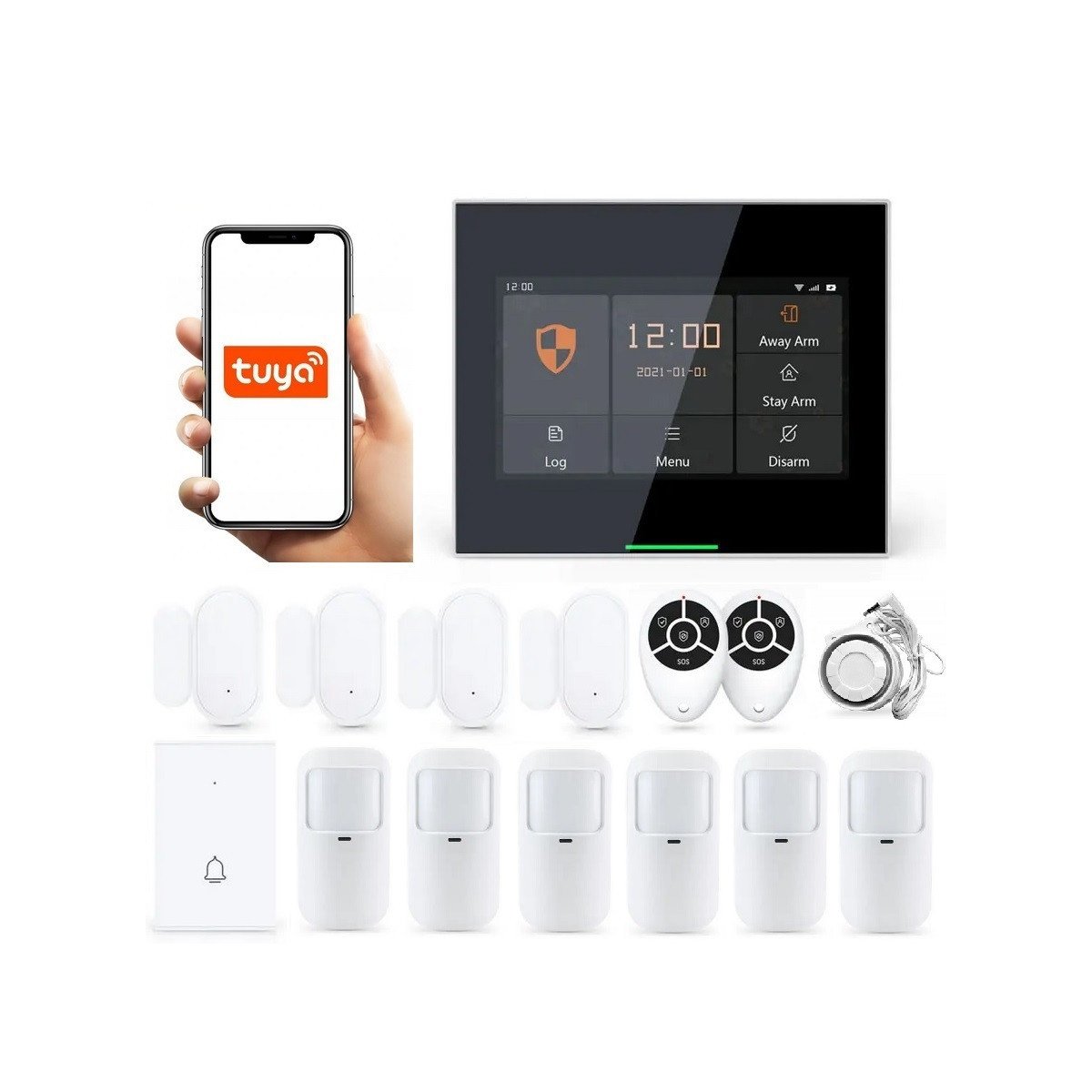

This version includes 6 PIR motion sensors and 4 wireless door/window opening sensors, allowing you to protect entrances, corridors and selected rooms from the start. The set can be expanded with additional compatible accessories when your needs grow.

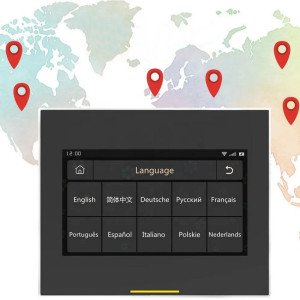

Polish Menu and Multilingual Support

The system offers voice prompts and interface language options, including Polish and other popular languages. This makes installation and daily use easier for family members, employees or anyone who needs simple control without complicated instructions.

Automatic Arming and Disarming Schedule

You can set schedules for automatic arming and disarming, which is useful for routine protection during work hours, night hours or times when the property is usually empty.

110dB Wired Siren and Backup Power

The included wired siren gives a loud sound warning to discourage intruders and alert people nearby. The built-in backup battery helps maintain protection during a short power interruption.

Expandable Security Configuration

The H502 platform can be expanded with compatible sensors, remote controls, RFID accessories and sirens. This allows you to build a setup adapted to the size and layout of your property.

Technical Specifications

Alarm Panel / Control Unit:

• • Model: H502
• • Display: 4.3 inch touch LCD
• • Operating voltage: DC 5V/1A
• • Current draw: under 140mA with screen off and under 280mA with screen on
• • Standby current: under 80uA
• • Siren current draw: under 560mA
• • Wireless component frequency: 433MHz
• • GSM frequency: 850/900/1800/1900MHz
• • WiFi standard: IEEE802.11b/g/n
• • Built-in backup battery: 3.7V / 500mAh
• • Operating temperature: -10°C to 55°C
• • Allowed humidity: under 80% without condensation
• • Menu languages include English, Chinese, German, Russian, French, Portuguese, Spanish, Italian, Polish and Dutch
• • Mobile app: Tuya Smart
• • Works with Amazon Alexa and Google Assistant
• • Panel dimensions: 120x98x12mm

PIR Motion Sensors:

• • Quantity in this set: 6
• • Detection angle: 110 degrees
• • Power supply: 2 AAA batteries included
• • Standby current: under 15mA
• • Working current: under 25mA
• • Signal frequency: 433MHz ± 0.5MHz
• • Detection range: up to 12m
• • Maximum distance from panel: up to 80m in open space
• • Detected object speed: 0.3 - 3m/s
• • Dimensions: 59x45x107mm

Door / Window Sensors:

• • Quantity in this set: 4
• • Battery powered operation
• • Standby current: below 8uA
• • Working current: under 15mA
• • Signal frequency: 433MHz
• • Maximum distance from panel: up to 120m in open space
• • Maximum internal magnet distance: 15mm
• • Operating conditions: -10°C to +50°C

Remote Controls and Accessories:

• • Remote arming and disarming
• • Communication frequency: 433MHz
• • Remote battery: 6F22 9V included
• • Remote range: up to 150m in open space
• • Recommended working temperature: -10°C to 60°C
• • Maximum operating humidity: 95%
• • Wireless doorbell / proximity accessory included depending on set version
• • Wired siren volume: up to 110dB
• • Siren operating temperature: -10°C to +40°C

Practical Protection for Larger Setups

The H502 platform is a good choice when you want a more complete system with a modern touch panel and several wireless accessories from the start. It can protect multiple rooms and can be further expanded when your needs grow.

Convenient Control for Family or Staff

Remote controls, RFID accessories and app operation make the system convenient for different users. This helps family members or employees arm and disarm the system without complicated instructions.

Smart Home Compatibility

Tuya Smart support allows the alarm to become part of a wider smart home environment. Depending on your configuration, you can combine the alarm with other compatible devices and create a more convenient security routine.

Reliable Everyday Security

The set is designed for daily use in places where quick notification and simple operation are important. It helps protect entrances, rooms, garages and office areas while giving you remote access to the most important functions.

Why Choose This Set

This H502 version with 6 PIR motion sensors is a ready security kit rather than a single accessory. It combines a touch control panel, wireless detectors, remote operation and a loud warning signal in one practical package.

Installation and Use Tips

Place the central panel in an accessible indoor location, install PIR sensors in areas with natural movement paths and position opening sensors on important doors or windows. After installation, test each sensor and notification channel to confirm that the system works as expected.

Good Fit for Everyday Security

The H502 GSM WiFi Alarm System 4.3 Inch Touch LCD + 6xPIR is suitable for everyday security tasks where convenience, discreet design and practical functions matter. It helps you keep important places under control and gives you more confidence when you are away.

Useful in Many Situations

Use it to supervise an entrance, room, garage, workplace, storage area or selected equipment. The device can support routine safety checks and everyday protection depending on the place of installation.

Prepared for Long-Term Use

The product can be used as part of a wider security setup or as a standalone alarm kit, depending on your needs. Correct installation, stable power and proper configuration help achieve the best everyday performance.
